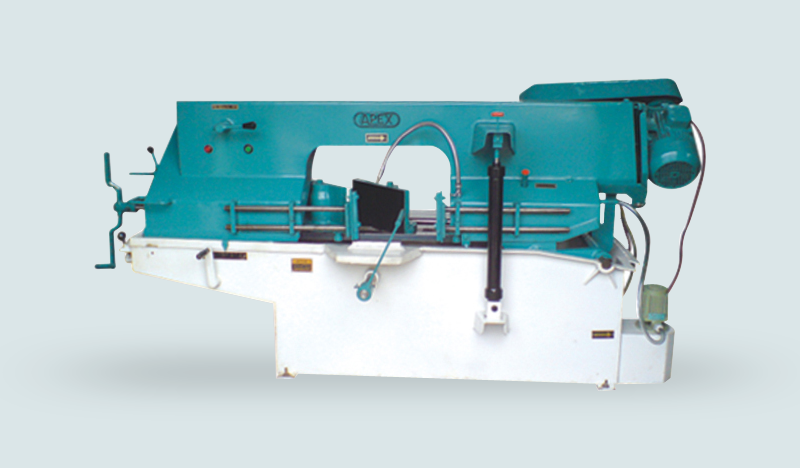

Horizontal Metal Cutting Bandsaw Machine
Horizontal Metal Cutting Bandsaw Machine

Horizontal Metal Cutting Bandsaw Machine

CLICK TO ZOOM VIEW
Click To Zoom View
  • Steel Body - Study and Elegant - Robost Design
  • Double Action Vice - for Fast and Firm Grip
  • Hydraulic Feeding Arrangement for Smoother Cutting
  • Supported by Controlling Pressure System
  • Provision for Optional Swivel Vice for Angular Cutting
  • Drive of Saw Blade is Supported with Heavy Duty Worm
  • Reduction Gear Box

    • SPECIFICATIONS

    Model AI-8H AI-12H AI-14H AI-16H AI-18H
    Cutting Capacity - - - - -
    ( Round ) 200 300 350 400 450
    ( Square ) 175 250 300 350 400
    Saw Blade 3000 X 27 X 0.9 3810 X 27 X 0.9 4100 X 34 X 1.1 4420 X 41 X 1.1 4570 X 41 X 1.1
    Motor H.P. (1440 RPM) 1.0 X 1440 2.0 X 960 2.0 X 960 2.0 X 960 2.0 X 960
    Coolant Pump 0.15 X 2800 0.15 X 2800 0.15 X 2800 0.15 X 2800 0.15 X 2800
    Blade Speet Mt./Mnt. 25-35-55-75 25-35-55-75 25-35-55-75 25-35-55-75 25-35-55-75
    Floor Space
    L X W X H (mtr.)    		 1.7 X 0.6 X 0.9 2.4 X 0.9 X 1.1 2.6 X 0.9 X 1.1 2.7 X 0.9 X 1.2 2.8 X 0.9 X 1.3
    Height Net
    (Kg.) Packed    		 320
    450    		 760
    950    		 820
    1050    		 900
    1150    		 950
    1200
    All dimensions are in mm & approximate
  • Standard Equipments : Coolant Pump(Mechanical), Motor Pulley, Starter Switch, Electric interior wiring, Saw Blade.
  • Extra Equipments : Bar Stand (Adjustable).
  • Note : Above Specifications are change without prior notice towards the improvements in our products.
